Whipple Supercharger for Camaro Z28
Since 1987, Whipple Superchargers™ have been the pioneers and leaders of twin-screw supercharging. Whipple was the first to bring positive displacement technology to fuel injected, emissions legal GM applications. With over 26 years of GM twin-screw supercharging experience, Whipple's team have now engineered the most powerful intercooled twin-screw SC system available today for your Chevrolet Camaro.
With all the latest technology, the all new Whipple system makes more power than any other positive displacement supercharger system on the market giving you tire frying, neck whipping power that will give you a grin from ear to ear. The new Whipple system is 100% complete and is designed for stock engines but has enough capability to work with heavily modified engines.

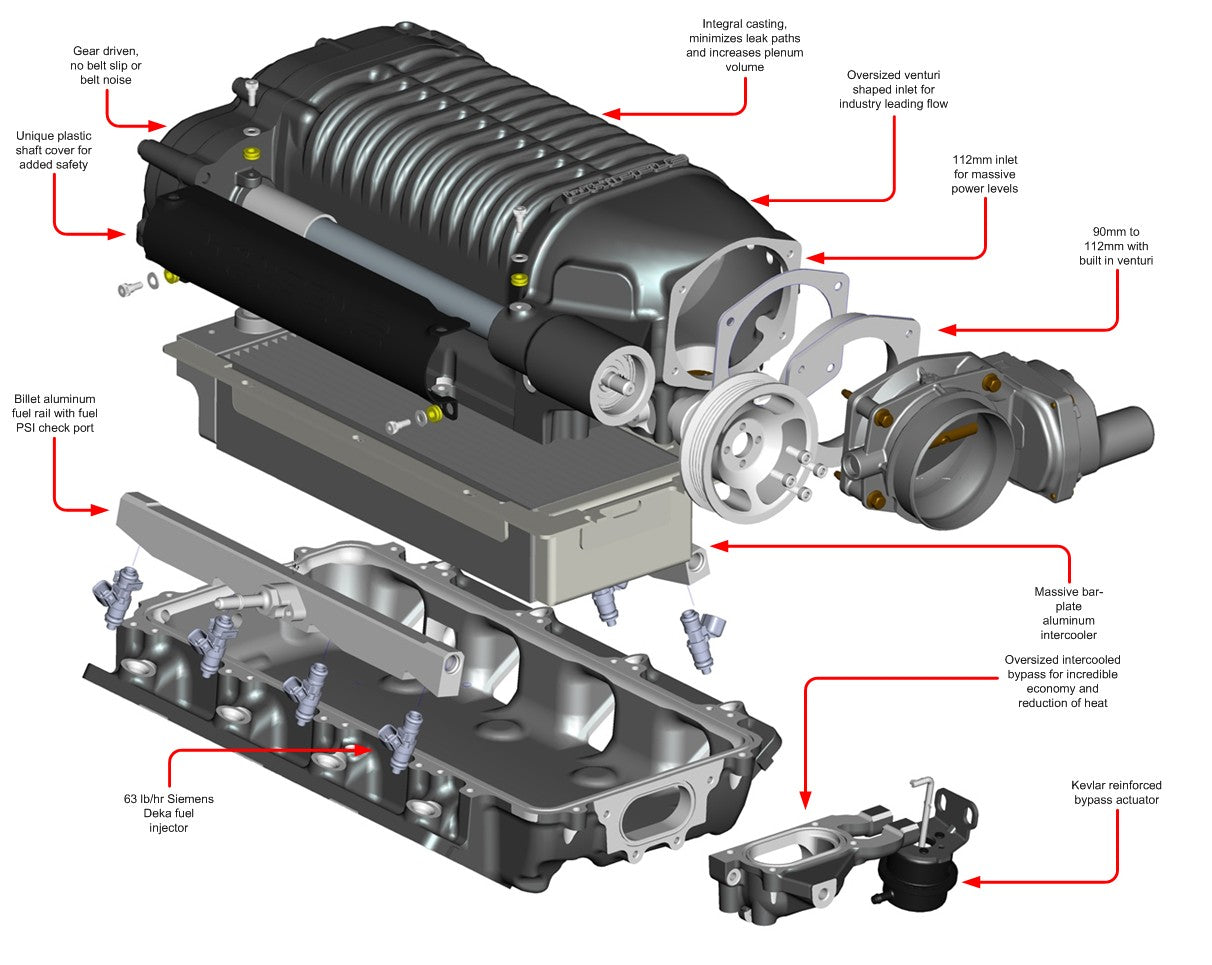

The system features Whipple's massive oversized air-to-water intercooler for unmatched cooling capacity, a unique front feed W175ax (a whopping 2.9 liter displacement) integrated Whipple twin-screw supercharger that reaches 99% volumetric efficiency and industry leading power potential. The unique intercooled bypass system offers better acceleration and less than 1hp of consumption during cruising for excellent fuel economy. The system also includes high-flow fuel injectors and aluminum high flow intake manifold. While others claim, Whipple Superchargers simply deliver more power per pound of boost than any other supercharger on the market today and lead the industry in fit and finish, with second to none quality and packaging.
The Whipple Z28 package comes with high flow 63lb/hr fuel injectors (@ 3 bar), giving you the capacity for up to 900 horsepower! Each complete system also comes with a custom calibrated fuel pump module to take full capacity of the factory high-flow fuel pump.
The most powerful 50-state emissions legal option available No other upgrades required, just massive power right out of the box

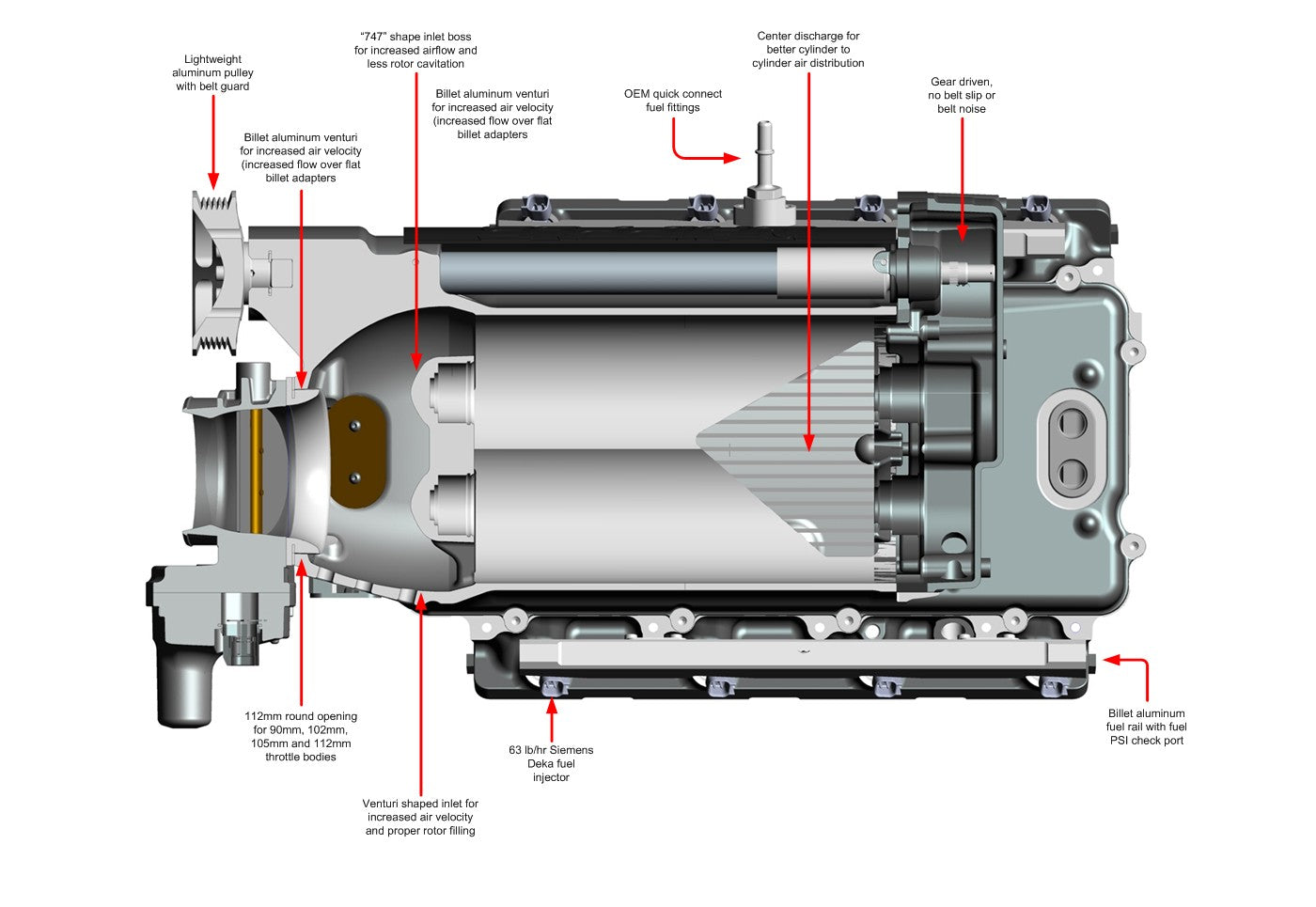

-Front entry W175ax (2.9 liters) Whipple twin-screw supercharger that significantly outperforms competitions 1.9L and 2.3L roots-type systems
-Front feed supercharger utilizes precision ground helical cut gears vs a problematic belt
-Carbon fiber hood vent standard
-Integrated casting to minimize bolt on pieces, adapters, leaks and flow restrictions
-Integrated Crusher™ venturi shaped inlet for maximum airflow capacity and minimal rotor cavitation
-Integrated Crusher™ 112mm round inlet outflows smaller 90 and 93mm inlets such as other Eaton based systems
-Integrated Crusher™ 112mm round inlet for optional 102mm throttle bodies
-Integrated design allows for oversized intercooler core compared to other smaller intercooler cores giving Whipple lower air charge temps which allows more boost and timing to be run on pump gas

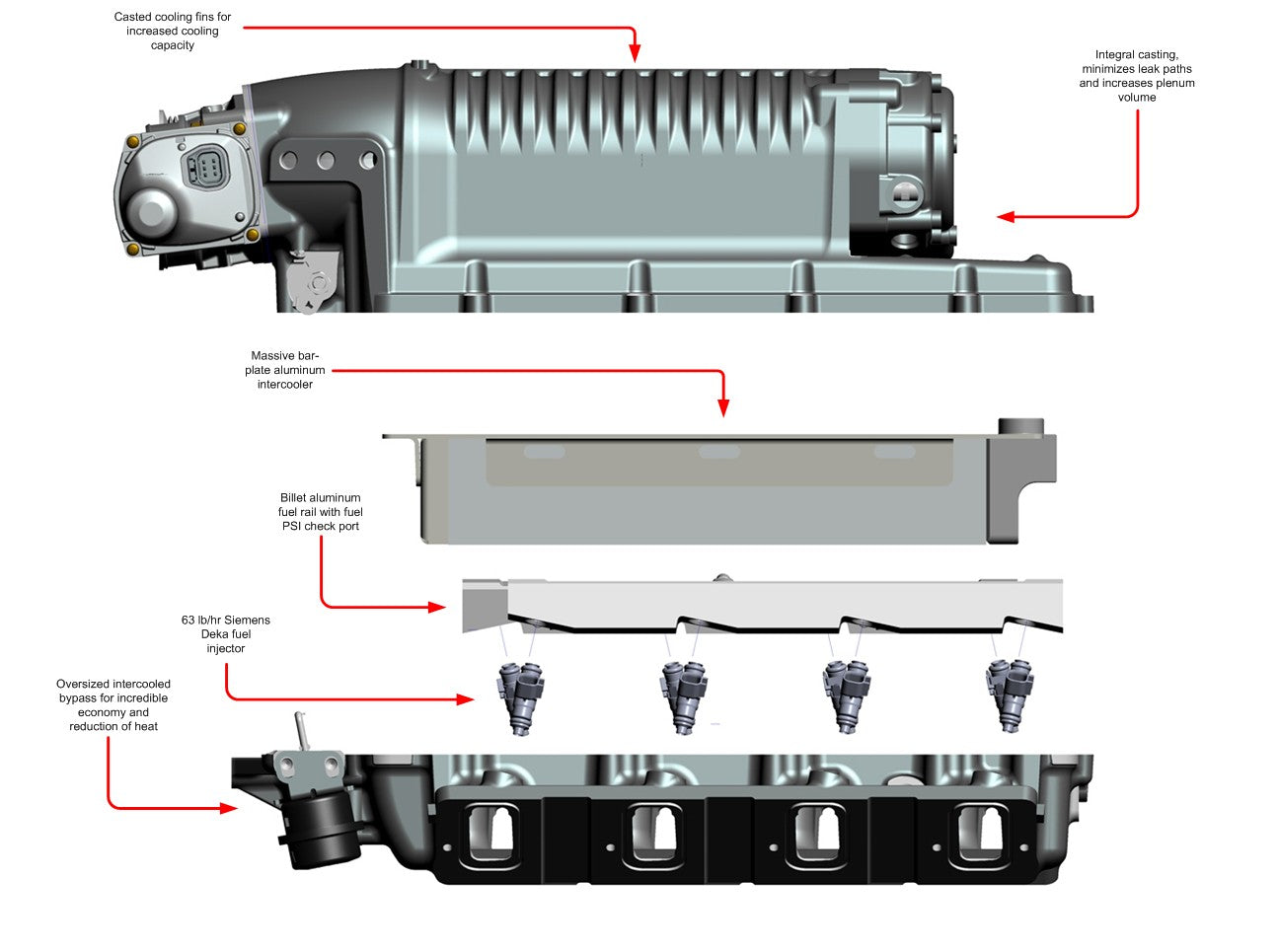

-Massive air-to-water aluminum bar-plate intercooler offers more cooling than any other positive displacement system available
-Oversized fabricated aluminum intercooler reservoir for repeatable power levels
-Whipple Superchargers massive oversized intercooled air-bypass system for industry leading reduction of burst knock and incredible fuel economy, no ridiculous fabbed steel tubes or systems that circulate hot air
-Carbon fiber hood vent included Self-contained oversized oil system for dramatically reduced oil temps in even the most demanding conditions
-Exclusive 3x5 rotor combo for significant increase in airflow under the curve than less efficient 4x6 rotor combo
-Zero turn inlet allows for decreased induction losses when compared to rear inlet systems and 180deg bends
-Center discharge port for better cylinder to cylinder distribution then other twin-screws with cobbled together billet adapters and forward facing discharge
-Discharge down design allows for less pressure loss which gives more power at lower boost levels
-Top mount design allows for cooler operation then upside down SC's that conduct heat from engine and are trapped by runners and covers, causing hotter manifold temps and less power per pound of boost
-More boost at the "hit" than any other twin-screw

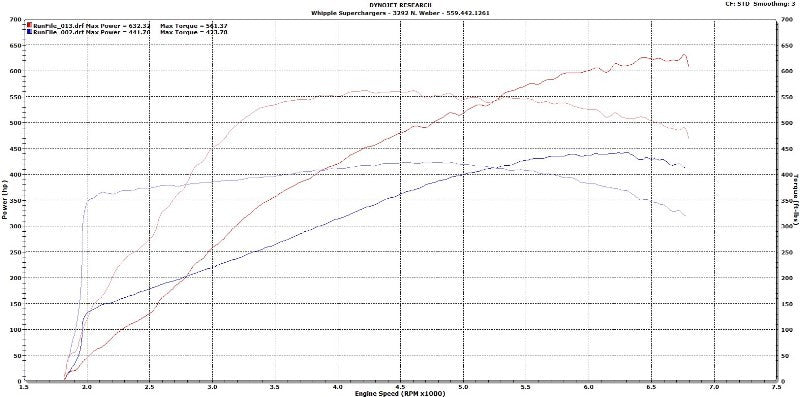

-Flat torque curve for incredible acceleration
-Custom fuel pump module for proper fuel flow calibration
-High density heat exchanger for incredible intercooler water temps

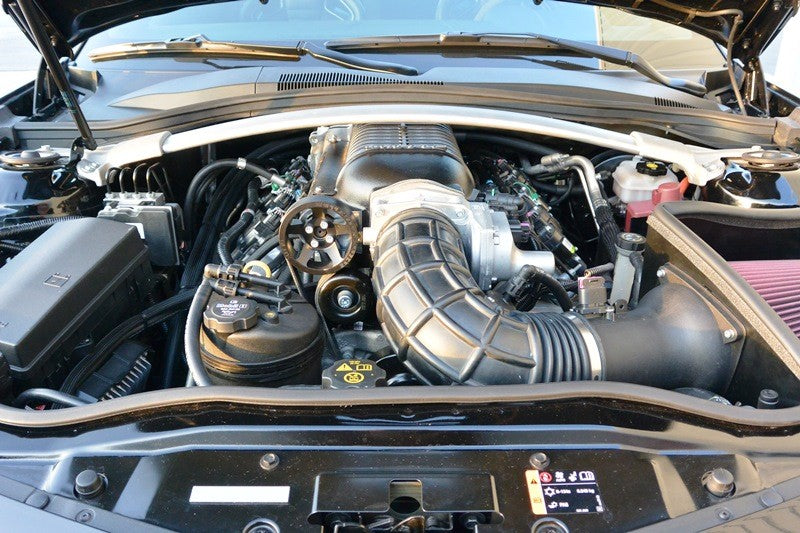

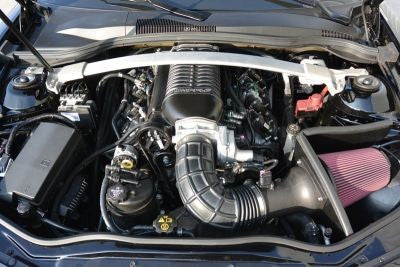

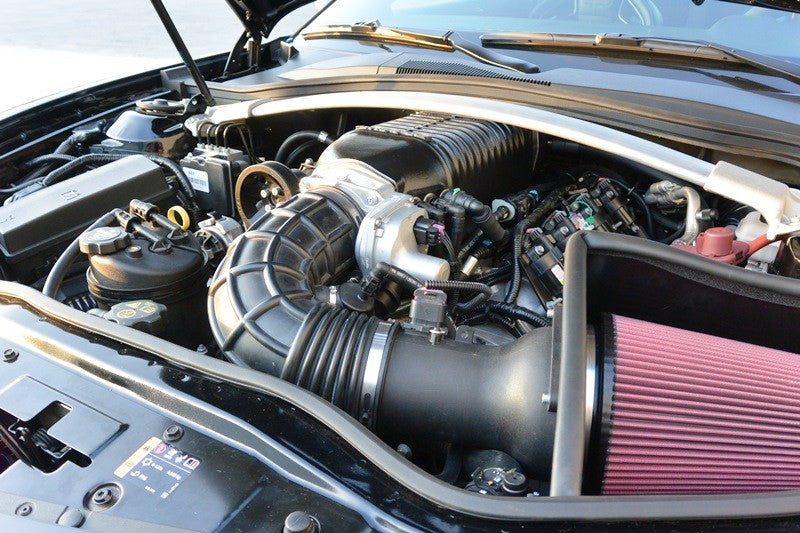

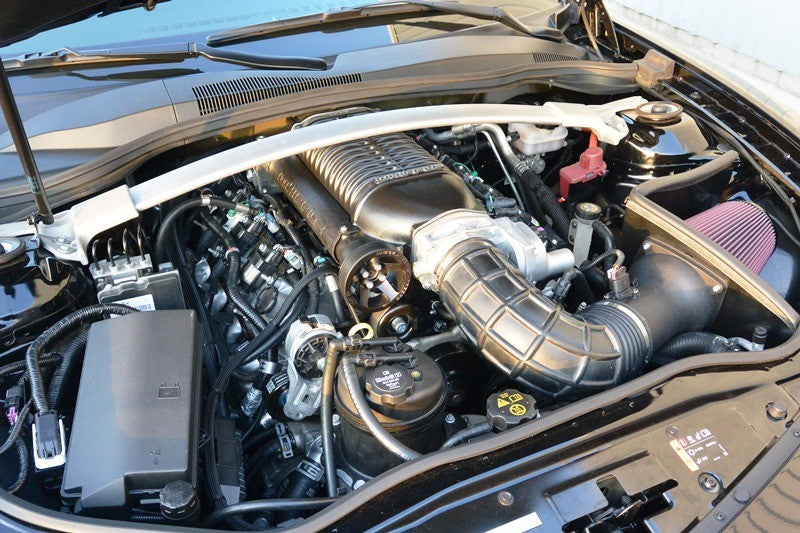

-Fits under factory hood with no modifications
-No internal modifications required, completed installation looks factory installed, not some cobbled together kit with multiple billet adapters Kits come complete with all necessary parts and hardware for installation
-Unique oil level sight glass for easy oil level and quality check, no dipstick to bind or misread
-Plug and play wiring with male and female connections
-High flow air filter system (50-state legal filter system) High flow fuel injectors included
-Proven 6-rib belt system with heavy duty spring loaded tensioner and adjustable idler system
-Optional 10-rib belt system with matching billet pulleys
-Stainless steel jack-shaft with unique plastic cover (or optional carbon fiber) for increased safety
-OEM quick connect fittings for easy installation, no ugly brass or steel fittings on the SC Complete kits.
